High Speed Super Resolution Instant Sim

High Speed Super Resolution Instant Sim

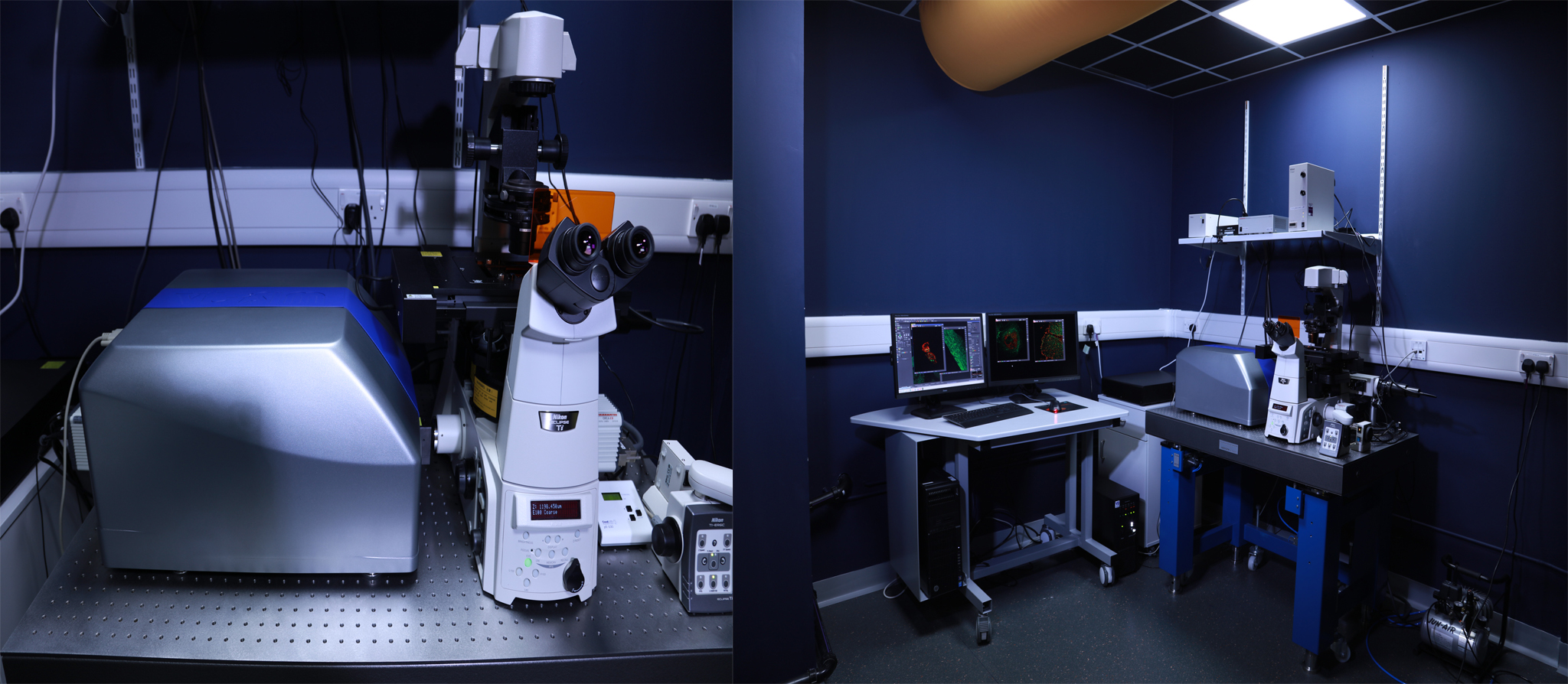

With VT-iSIM, the ground breaking high speed super resolution imaging system from VisiTech International, you can image at spatial and temporal resolutions never thought possible before. With no requirement to use specific fluorophores and without any computation, the VT-iSIM produces super resolution images in real time at up to 1,000 frames per second. This high temporal resolution is combined with a spatial resolution enhancement on all axis of up to 2x regular wide-field microscopy.

Specifications

  • Spatial Resolution: 125nm Laterally and 350nm Axially*
  • Temporal Resolution: Scan Speed up to 1000fps, full frame With Scientific CMOS camera, achievable capture rates are: 200fps @ 1024x1024, 400fps @ 1024x512, 800fps @ 1024x256
  • Pin Holes: Selectable from 10-64um
  • Dichroic Changer: Automated 3-Position Dichroic Changer
  • Emission Filter Changer: Regular or High Speed 6-Position Emission Filter Changer
  • Excitation: Up to six solid state lasers selectable from within the visible range (405, 445, 488, 514, 532, 561, 642nm) intensity and laser line selection controlled via software
  • Sync: Perfect camera & excitation sync comes as standard
  • Camera Specification: For accurate sampling camera must have pixel size < 6.5um Camera connection is via regular c-mount
  • Microscope Specification: For quoted resolution numbers high NA high magnification lens must be used, i.e. 100x 1.49NA Microscope connection is via regular c-mount
  • Software: System supplied with VTi's VoxCell Scan Acquisition software but can also be supplied with MM or NIS Elements
